With the evolution of BIM as the de facto workflow, architects increasingly receive consultant information in a BIM format.

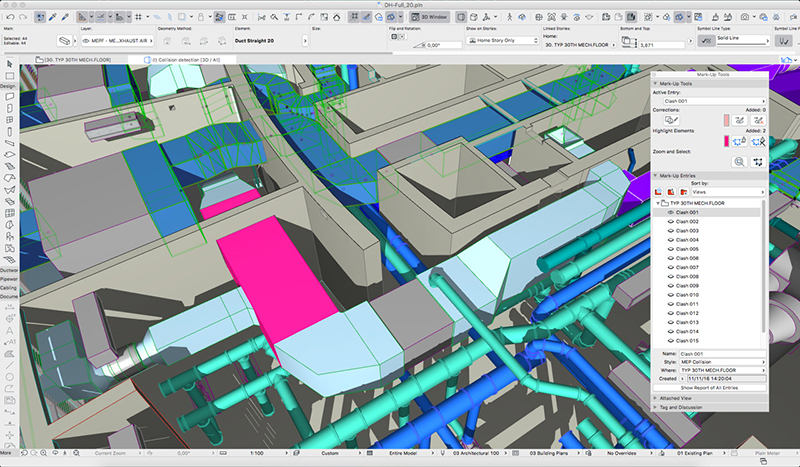

Collision Detection

To help architects fulfil their role as lead coordinator of the model, Collision Detection allows two groups of elements to be compared through user-defined criteria sets. These criteria sets can include Element Types, Classification values, Property values and Attributes, such as Layer names or Building Materials.

Using ARCHICAD’s Mark-Up palette the detected collisions between various elements can be highlighted, identified and edited as needed.
